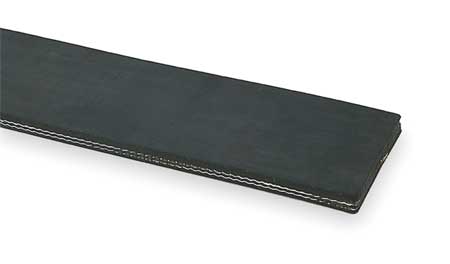

2 Ply 220 3/16 X 1/16 Heavy Black Conveyor Belt
|Material||SBR Cover / Polyester Nylon Fabric||Color||Black|
|Plies||2||Tension Rating (PIW)||220lbs|
|Overall Thickness||.344" / 8.75MM|
|Top Cover||3/16" / 4.75MM||Bottom Cover||1/16" / 1.6MM|
|Oil Resistance||Lite||Temperature Rating||-25F to 225F|
|Min. Pulley Diameter||12"||Joining||140, 550, R5, Step Splice, Bias Step Splice|

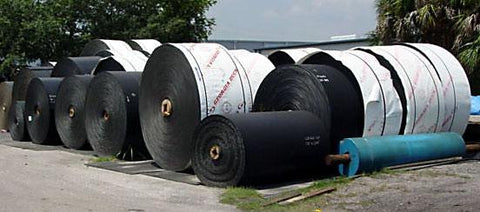

Conveyor Belt Inventory Locations :
City of Industry, CA / Sacramento, CA / Vancouver, WA / Portland, OR / Boise, ID / St. Louis, MO / Charlotte, NC / Grand Prairie, TX / Philadelphia, PA / Oakland, NJ / Fairfield, OH / Atlanta, GA / Michigan City, IN
Call for current availability and volume pricing! 1-951-764-3678
Standard Available widths:
60" Wide 54" Wide 48" Wide 42" Wide 36" Wide 30" Wide 24" Wide 18" Wide
Custom widths available, just ask us!
We can also Lace your belt, add Cleats or Sidewall or V-Guides.
This belt is compounded to provide excellent abrasion resistance and flex life and is the best buy for the majority of conveyor belt applications. Its high-tension synthetic fabrics result in minimum stretch, great fastener holding ability, impact resistance and the highest adhesion between plies and cover.
