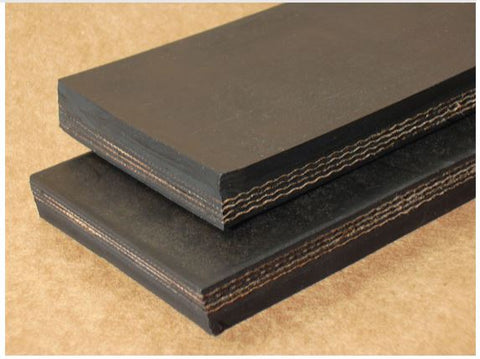

4 Ply 440 1/4 X 1/16 Heavy Black Conveyor Belt
9/16" overall thickness
Call for current price and availability 1-951-764-3678
Features: 4 Ply 440 features a smooth top and bottom surface. The heavy cover and high strength synthetic fabric results in a long wearing, mildew and rot resistant, low stretch belt.
Applications: 440 1/4 x 1/16 is excellent for heavy duty abrasive applications. It is used to convey gravel, rock, ore, limestone and many other industrial materials. It is also used as an elevator belt.
Nominal OAG: 0.500" +/- .030
Minimum Pulley Diameter: See Chart Below
View Profile Minimum Pulley Diameter Chart
Top Surface: 1/4" SBR Cover
Bottom Surface: 1/16" SBR Cover
View Chemical Resistance Chart
Work Tension: 440 lbs. PIW
Elongation: Less than 4%
Weight P.I.W. / Ft.: .270 lbs.
Working Temperature: -20F to 250F
Joining Method: Lap Splice; Lacing
View Lacing Selection Chart
